Why Aerolam XLPE duct insulation performs better than conventional materials in HVAC applications with a lightweight, energy-efficient, moisture-proof solution that prevents condensation, improves HVAC performance, and ensures long-lasting, hygienic operation.
XLPE Duct Insulation in HVAC Systems: The High-Performance Choice for Green Energy-Efficient Buildings which are GreenPro Certified and EPD International EPD System.
Every HVAC system starts with a promise to deliver conditioned air efficiently from the plant room to the occupied space. But between the air handling unit and the supply diffuser, there are hundreds of metres of ductwork. And if those ducts are not insulated correctly, a significant portion of that conditioned air never arrives at the right temperature in the occupied space which utlimately affects high energy consumption.
Duct heat gain in cooling systems and Duct heat loss in heating systems are among the most significant sources of HVAC inefficiency in Indian buildings. Add condensation on cold duct surfaces to the equation, and you have a problem that affects energy consumption, Poor indoor air quality, and the harms the longevity of the duct system.
Here Aerolam XLPE Duct Plays a vital role to improve the energy efficiency of Green energy building’s & Industrial space.
Aerolam XLPE Duct Insulation with a high thermal resistance and moisture barrier with class “O’ fire safety (BS 476 Part 6 & 7 standards) and easy installation solve the problem of higher energy consumption in industrial and commercial spaces.
What is XLPE Duct Insulation?
XLPE (Cross-Linked Polyethylene) duct insulation is a closed-cell foam insulation specifically engineered for application on HVAC ductwork. It is produced through a chemical cross-linking process that enhances the foam’s thermal stability, compressive strength, and resistance to stop external moisture from entering the duct and maintains the insulation temperature variation.
The Product are Green Pro Certified which gives assurance of Green building energy and with other certification like EPD (International EPD System) and European Standards.

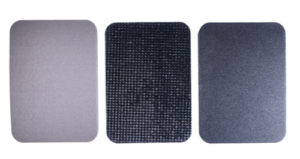

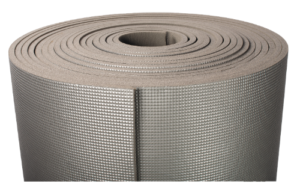

Aerolam manufactures XLPE duct insulation in sheet and roll formats in thicknesses from 3 mm to 140 mm, with multiple cladding options available to suit different installation environments. Standard cladding options include Aluminum Foil, Alupet, Metpet, Aeroclad, Glass Cloth, UV-grade, Self-Adhesive, and Plain finishes.
The Problem: Why Duct Insulation Cannot Be Compromised
Poorly insulated HVAC ductwork creates a cascade of problems that affect the entire building:
- Thermal gain on supply air ducts in cooling systems raises supply air temperatures, increasing compressor load and energy consumption.
- Condensation on cold duct surfaces in humid climates leads to water entering into ceilings, mould growth, and poor indoor air quality.
- Heat loss on heating ductwork in commercial and industrial buildings means longer run times and higher energy bills.
- Inadequately insulated ducts in high-humidity environments corrode faster, reducing the service life of the entire HVAC system.
The right duct insulation material addresses each of these issues from the moment it is installed.
Key Benefits of Aerolam XLPE Duct Insulation
- Stable K Value for Consistent Thermal Performance
The unique charterstics of Aerolam XLPE is its stable K value, which measures thermal conductivity which support Green building projects also.
Unlike the other insulation materials whose thermal performance decrease with moisture absorption or temperature cycling, Aerolam XLPE Duct maintains consistent thermal resistance throughout its service life.
- Class O and Class 1 Fire Rating
According to BS 476 Part 6 & 7, Class O materials must have a fire propagation index of I ≤ 12. Aerolam’s XLPE has an exceptionally low I-value of 5.06, offering superior fire safety compared to standard foam insulations.
Aerolam XLPE duct insulation conforms to Class 1 for Surface Spread of Flame and Class O for Fire Propagation as per BS 476 — the most stringent fire safety classifications for building insulation materials.
In the context of HVAC ductwork, which can act as a conduit for fire spread in a building, this fire rating is not just a compliance requirement but it is a crucial safety feature.
The XLPE HVAC is FM approved (FM 4924).
- Negligible Moisture Absorption
Aerolam XLPE absorbs virtually no moisture. This prevents the insulation from becoming a reservoir for condensation and ensures that the duct surface remains protected from corrosion and biological growth across the full service life of the system.
The water vapour resistance factor (µ)-mu standard EN12086 test value 97,200 provides high resistance to moisture penetration
Water Vapor Permeance according to the standard EN 12086 the test value is almost zero as it dampness, mold, and condensation issues.
- Wide Operating Temperature Range
Aerolam XLPE duct insulation performs reliably from -20°C to +115°C. This makes it suitable for standard comfort cooling and heating systems, as well as specialized industrial HVAC applications involving process air at elevated or sub-zero temperatures.
- Dust-Free and Fibre-Free
Unlike glass wool or mineral wool duct insulation, Aerolam XLPE is dust-free and fibre-free. This eliminates health risks during installation and ensures that no fibre enter the air stream if the duct is damaged. In healthcare facilities, cleanrooms, and food processing environments, this characteristic is non-negotiable.
- Lightweight and Fast to Install
XLPE sheets are lightweight and flexible, making them easy to cut, handle, and apply to ductwork of any shape or size.
The material bonds well with standard HVAC adhesives that can be installed easily, reducing the project timelines and on-site labour costs compared to rigid insulation board alternatives.
(We recommend SR998 and equivalent for better performance.)
Applications of XLPE Duct Insulation
Commercial HVAC Systems: Offices, shopping malls, hotels, hospitals, and institutional buildings where consistent supply air temperature and condensation control are essential.
Industrial HVAC: Factories, warehouses, and process facilities requiring insulation that can withstand demanding temperature and humidity environments.
Automobile Insulation (Noise Reduction and Vibration Damping) It is used in vehicles to suppress noise and vibrations from the engine and other moving parts, providing a quieter and more comfortable driving experience.
Textile Industry: Aerolam XLPE is specifically engineered for textile industry applications, where humidity control and consistent air temperature directly affect production quality.
Cleanrooms and Healthcare: Dust-free, fibre-free XLPE is the preferred duct insulation choice for hospitals, pharmaceutical manufacturing, and cleanroom environments.
Residential and Light Commercial: Split system and ducted air conditioning installations in apartments and light commercial buildings where compact, easy-to-install insulation is required.

Why Choose Aerolam XLPE for Duct Insulation?
Aerolam has been manufacturing XLPE insulation in India using world-class equipment aligned with international production standards. The breadth of the product range — from 3 mm to 140 mm in thickness, across multiple cladding options — means HVAC engineers and contractors can specify precisely the right product for each application without compromise.
The combination of Class O fire rating, stable thermal performance, and no-maintenance service life makes Aerolam XLPE Duct one of the most technically complete duct insulation solutions available in the Indian market.
Frequently Asked Questions
What thickness of XLPE duct insulation is recommended for standard comfort cooling?
Recommended thickness depends on the duct surface temperature and ambient conditions. For standard comfort cooling applications in India, 9 mm to 25 mm is typically specified. Aerolam’s technical team can advise on the appropriate specification for specific project conditions.
Can Aerolam XLPE duct insulation be used on both rectangular and circular ducts?
Yes. The flexibility of XLPE sheet allows it to be applied to rectangular, circular, and irregular duct geometries, including curved sections, without specialist fabrication.
Does XLPE duct insulation require any special adhesive?
Aerolam XLPE can be applied using standard HVAC contact adhesives. Self-adhesive variants are also available, which simplify installation further by eliminating the need for a separate adhesive application step.
Is XLPE duct insulation suitable for outdoor ductwork?
Yes, when specified with UV-resistant or Aeroclad cladding. These variants provide weather protection for ductwork installed in exposed outdoor environments.
How does XLPE compare to glass wool for duct insulation?
XLPE offers superior moisture resistance, is dust-free and fibre-free, and requires no vapour barrier. Glass wool absorbs moisture over time, reducing thermal performance and potentially supporting mould growth. For most HVAC applications, XLPE delivers better long-term performance and is safer to install.
Conclusion
Aerolam XLPE duct insulation is not a specification decision to be taken lightly. The material chosen determines system efficiency, indoor air quality, fire safety compliance, and maintenance requirements for the life of the building. In a market where energy efficiency targets are tightening and building standards are evolving, XLPE is the material that delivers on every count.
Our Aerolam XLPE Duct insulations are (EPD International EPD System) and Green Pro Certified which assures that it maintains the standard quality of XLPE Duct Insulation.
Aerolam XLPE duct insulation combines technical performance, fire safety, and installation practicality in a product that has been proven across India’s most demanding commercial and industrial projects. Visit https://aerolam.com/ to explore the full range for your project.
