Bubble Insulation

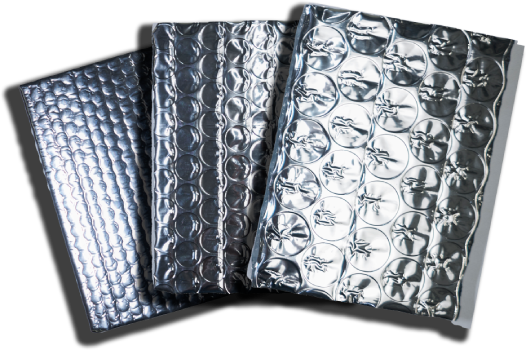

Aerolam manufactures highly versatile Bubble Insulation solutions using the latest technology, made to order for virtually any industry.

Aerolam is the first in India to produce double bubble insulation and have a state-of-the-art lamination technology which is one of a kind.

This type of insulation is hybrid in nature and has Unique & Ultra Over Air Technology. Aerolam manufactures insulation of various thicknesses, starting from 4 mm up to 20 mm. The “Bubble + XLPE” uniquely combined product has been recently developed by Aerolem.

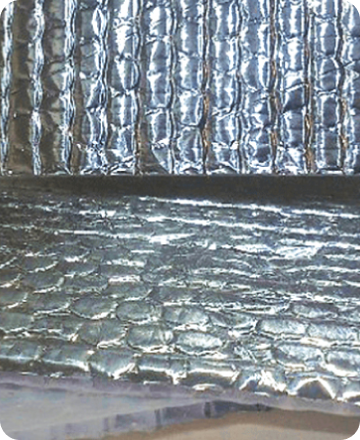

Aerolam Super PE

Aerolam Super PE contains single layer of fire retardant air bubble film laminated with single side aluminium foil and white poly on other side.

  • Roll Size (W X L)
    1.2 m X 40 m
  • Bubble Size
    4 mm X 10 mm
  • Nominal Thickness
    4 mm

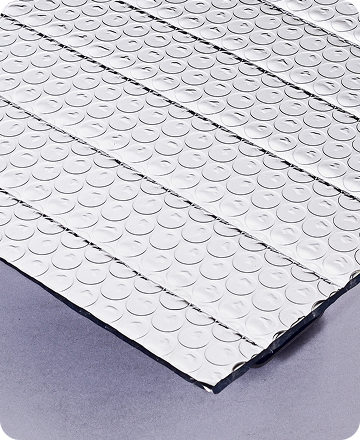

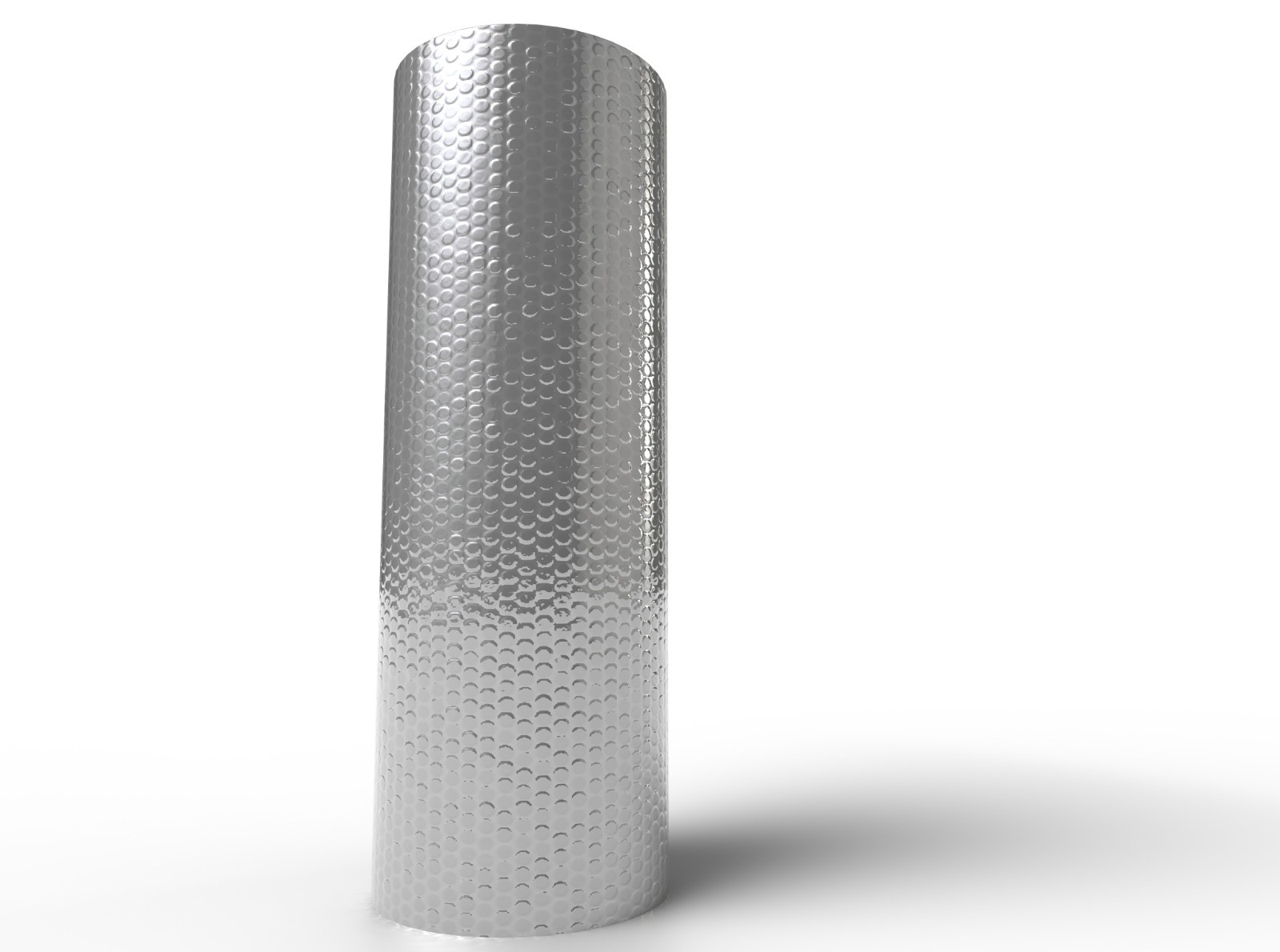

Aerolam Super

Aerolam Super contains single layer of fire retardant air bubble film laminated with both side pure aluminium foil.

  • Roll Size (W X L)
    1.2 m X 40 m
  • Bubble Size
    4 mm X 10 mm
  • Nominal Thickness
    4 mm

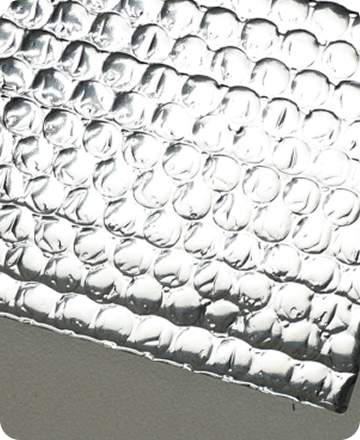

Aerolam Premium

Aerolam Premium contains 2 layers of fire retardant polyethylene air bubble Film laminated with both the side pure aluminium foil.
  • Roll Size (W X L)
    1.2 m X 40 m
  • Bubble Size
    4 mm X 10 mm
  • Nominal Thickness
    8 mm

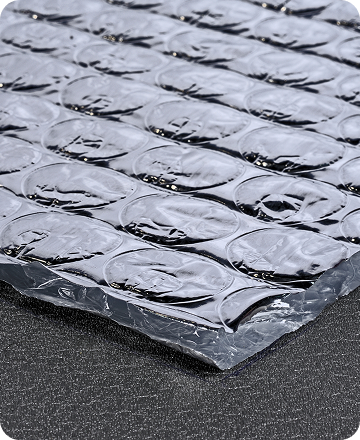

Aerolam Advance

Aerolam Advance contains single layer of FIRE RETARDANT BIG BUBBLE(10mm Thickness x 30 MM Diameter) laminated both side with pure aluminium foil.
  • Roll Size (W X L)
    1.2 m X 40 m
  • Bubble Size
    10 mm X 30 mm
  • Nominal Thickness
    10 mm

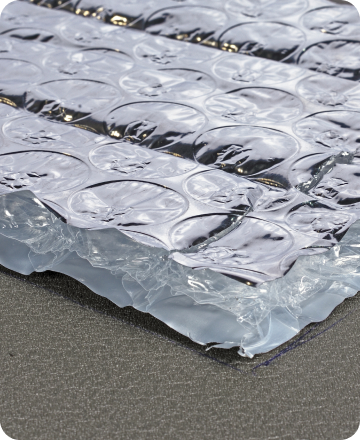

Aerolam Optimum

Aerolam Optimum contains double layers of FIRE RETARDANT BIG BUBBLE(10mm Thickness x 30 MM Diameter) laminated both sides with pure aluminium foil.

  • Roll Size (W X L)
    1.2 m X 30 m
  • Bubble Size
    10 mm X 30 mm
  • Nominal Thickness
    20 mm

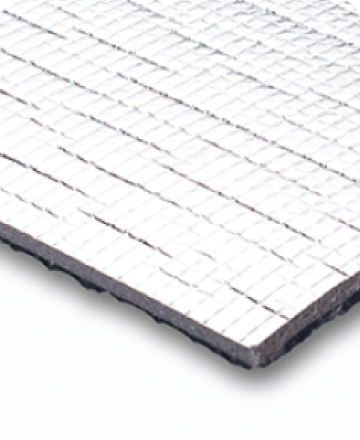

Aerolam Unique

Aerolam Unique is a hybrid insulation sheet containing a layer of air bubble film and XLPE layer, laminated on both sides with pure aluminium foil.

  • Roll Size (W X L)
    1.1 m X 30 m
  • Bubble Size
    10 mm X 4 mm
  • Nominal Thickness
    8 mm

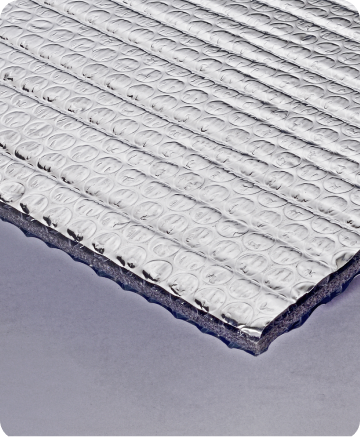

Aerolam Ultra

AEROLAM Ultra is a hybrid insulation sheet containing two layers of air bubble film and one XLPE layer, laminated on both sides with pure aluminum foil.

  • Roll Size (W X L)
    1.1 m X 30 m
  • Bubble Size
    10 mm X 4 mm
  • Nominal Thickness
    15 mm



Advantages of Unique Over Air Bubble Insulation & Ultra Over Air Bubble Insulation


  • This Unique & Ultra-insulation has an extra layer of XLPE as compared to normal insulation. i.e. Chemically cross-linked, Closed Cell, Polythene foam insulation. XLPE has a thermal conductivity of the best quality. i.e. 0.0329 W/m.K at 23 °C. It is also suitable for a wide temperature range from -40 °C to +115 °C. The presence of XLPE layer in Unique Over Air Bubble Insulation or Ultra Over Air Bubble Insulation will enhance overall performance of temperature reduction.

  • XLPE stands out because it remains unaffected by most mild acids and alkalis. It also offers high resistance to ingress of moisture therefore, as a result, its thermal properties remain unaltered with time. This XLPE material is resistant to Fungi and Bacteria attack which is essential in low-temperature applications.

  • Air Bubble insulation is suitable for blocking radiative heat. An additional layer of XLPE saves energy for conductive & convective heat loads which in turn gives added advantage and enhances the overall performance of the insulation. Presence of a Unique/Ultra XLPE layer enhances overall acoustic property and helps in reducing rainwater noise in metal roofing when it is applied under deck.


Applications

Underdeck / Under Roof Insulation

Poultry

Water Tank Insulation
